PRATIKA 56 MPE X2 INOX
Stainless steel - Automatic packaging machine - fully electrical and servo-assisted – sealing bar 600x400 mm – max product h. 240

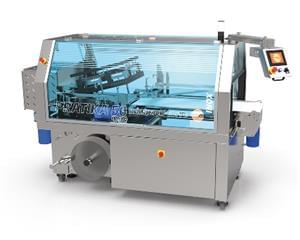

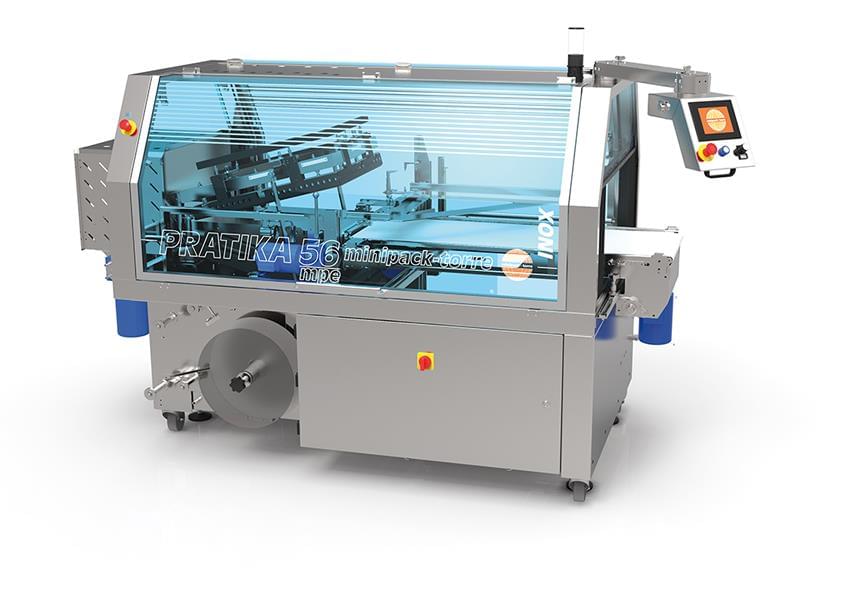

Pratika 56 MPE X2 INOX: automatic heat shrink packaging machine with double hatch
The new version of PRATIKA 56 MPE X2 INOX is the product of careful attention to market requirements with the purpose of proposing a technologically advanced and at the same time versatile and “user- friendly” heat shrink packaging machine.
Enhanced with strong electronic, mechanical and technological contents, the new PRATIKA 56 MPE X2 INOX heat shrink packaging machine, suitable for operation on both sides thanks to its double hatch, represents a perfect synthesis of reliability, high performance, versatility and safety, bringing a new standard to the way of conceiving automatic packaging machines with heat-shrink film.
“Made in Italy with an international heart”: each of the automatic minipack®-torre machines is manufactured in the company's production facilities, though they contain an international heart of electrical and electronic components from a multinational like Schneider Electric.
technical features
| Electrical power supply | 230V 1Ph |
| MAX power installed | 2,5 kW |
| Maximum current | 11 A |
| Hourly output (based on the measurement of the product and the film used) | 0-3600 p/h |
| Available dimensions of the sealing bars | 600x400 mm |
| MAX product size (the maximum measurements cannot be used at the same time) | 600x400x240 mm |
| MAX Reel Dimensions (Ø x length) | Ø300x700 mm |
| Work surface height | 870 mm (wheels) 830÷910 mm (feet) |
| Machine dimensions (guards open) | 2893x1720x1980 mm |
| Machine dimensions (guards closed) | 2518x1240x1558 mm |
| Machine weight (Net/Gross) | 623/785 kg |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

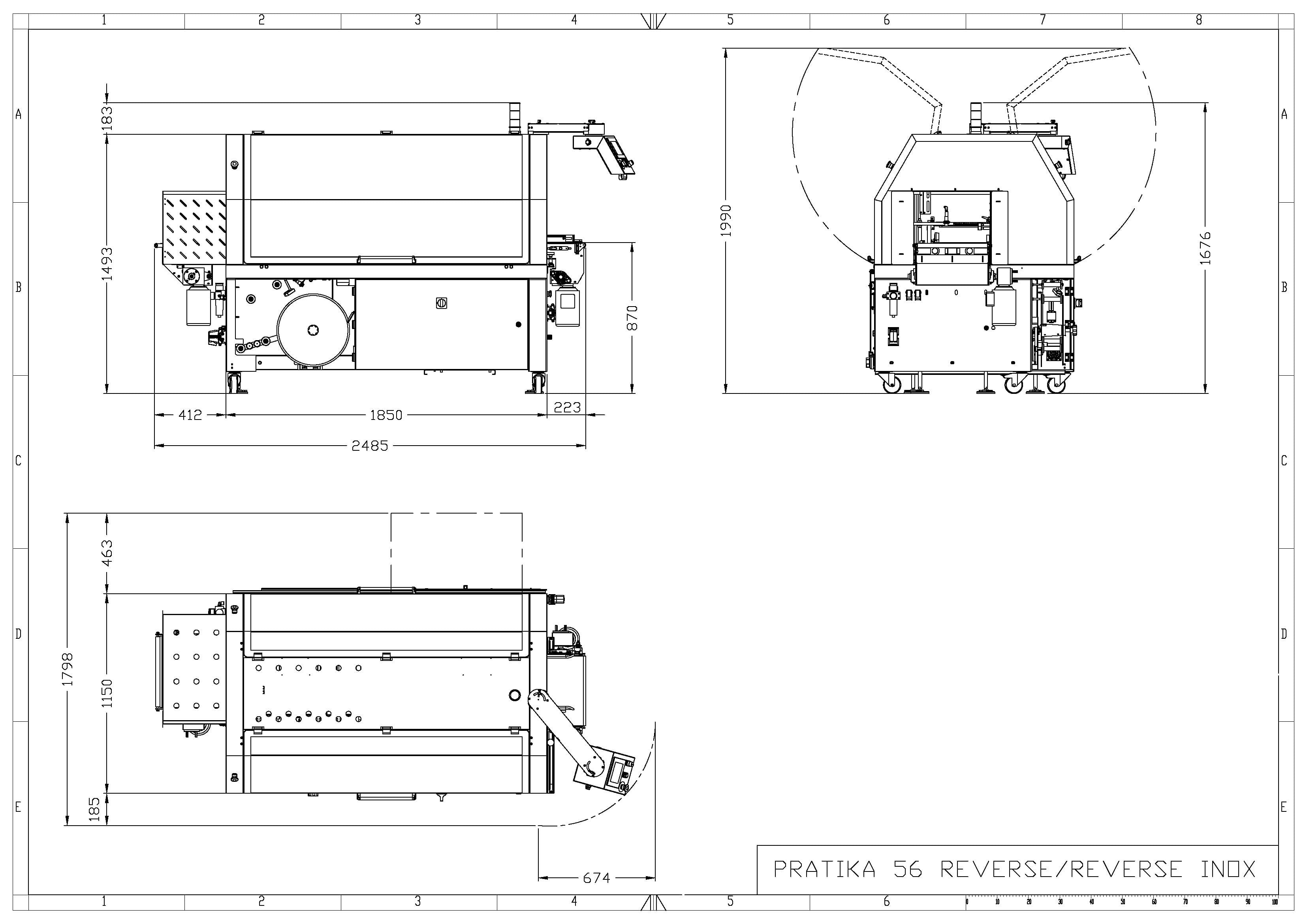

Technical drawing
DOWNLOAD PDF
DO YOU HAVE THIS MACHINE?
Register it now on our website...
Would you like to pack your products with this machine? Book your free, non-binding packaging test.Optional
Barcode Reader
“Film end” photocell kit
“Reel end warning” photocell kit
Products on infeed reading photocell kit
Photocell kit for non-transparent film
Product presser kit
Anti-static brush kit
Photocell kit for transparent products
Box for remote support
Kit of 5 photocells for irregular shape products
Infeed belt roller guide kit
19kVA Auto-transformer kit 415/460V 3Ph SEC. 230V 1Ph/400V 3Ph
Wireless push-button kit
Kit with 32-needle wheel
Reel change carriage kit
Pedal kit
Kit of guides for unstable or cylindrical products, min h. 45 mm
Module kits to transfer unstable products from “Pratika 56” to “Tunnel 50/50 Twin”
H.increase kit 150 mm
Module kits to transfer unstable products from “Pratika 56” to “Tunnel 50 Twin GT”
Curved belt protection kit NT230A32/35
Powermeter Kit
Roller conveyor kit 0,7 m with protection
Photocell kit for printed film
“Reel end warning” photocell kit
Product safety photocell kit (h. 10-50 mm)
Customisation
Belt for liquids wiper brush kit
Unstable product packaging guides kit
Kit of guide with photocell
Electric perforating kit
Black food-grade flame-retardant belt 2935x400mm
Kit of internal outfeed belt guide for unstable products
3500VA 50/60Hz Auto-transformer kit 180-210V / 230V
Easy open kit
Infeed belt cleaning kit
Remote assistance module kit (Industry 4.0)
Blue food-grade belt 2935x400mm (for frozen products)
Aligner kit
Aligner kit (unload belt)
Kit of guides for unstable products (h. min. = 88 mm)
Kit of guides for unstable products (outfeed belt)
