Pratika 56 MPS X2
Automatic packaging machine with continuous sealing Completely electric and servo-assisted - Sealing bar 400mm X ∞ - max product height 240mm
![DSCF8661 DSCF8661](https://www.minipack-torre.it/en/computedimage/dscf8661.i171002-kSBsmhO-w1175-h645-l2-n1-c0-r1.png)
![](https://www.minipack-torre.it/Content/images/industria2_4.png)
Pratika 56 MPS X2: for maximum efficiency and versatility
The new PRATIKA 56 MPS X2 is a servo-assisted automatic shrink wrapping machine, equipped as standard with the Side Seal device, continuous sealing with no length limits, as well as Center Sealing and fully electric operation.
This machine, suitable for packaging formats up to 400 mm in width and 240 mm in height, has been enhanced in all mechanical and electronic components to achieve a production rate of up to 3600 pieces per hour (depending on product dimensions and film used).
PRATIKA 56 MPS X2 thus represents a perfect synthesis of reliability, high performance, versatility, and safety, further evolving the concept of automatic shrink film packaging machines.
The most appreciated model of the new range of Minipack automatic packaging machines:
- Continuous sealing system.
- Impulse side seal blade, allowing the temperature to go from 0°C to 200°C in a few seconds, maintaining a constant temperature for uniform side sealing.
- Easy and quick film positioning system in the side seal.
- Materials and technical solutions chosen for long-lasting use.
- Access to all parts of the machine for easy maintenance.
- Brushless servomotor, allowing constant pressure on the sealing bar for consistent sealing.
- Control logic managed by PLC.
- The machine offers remarkable versatility and convenience, allowing the operator to work easily from both sides thanks to the movable PLC, the presence of a double door, and a rear drawer that facilitates effortless coil change.
- Fully electric, with no need for compressed air, ensuring reduced energy consumption.
- Adjustable and electronic Center Sealing device.
- CE standard compliance.
technical features
Electrical supply | 230V 1Ph |
Maximum installed power | 2,5kW |
Maximum current | 11 A |
Hourly production | 3600 p/h |
Maximum product dimensions (width) | 400 mm |
Maximum product dimensions (height) | 240 mm |
Maximum product dimensions (length) | ∞ |
Maximum coil dimensions (Ø x length) | 350x700mm |
Infeed tape height | 870 mm (with wheels) 830-910 mm (with feet) |

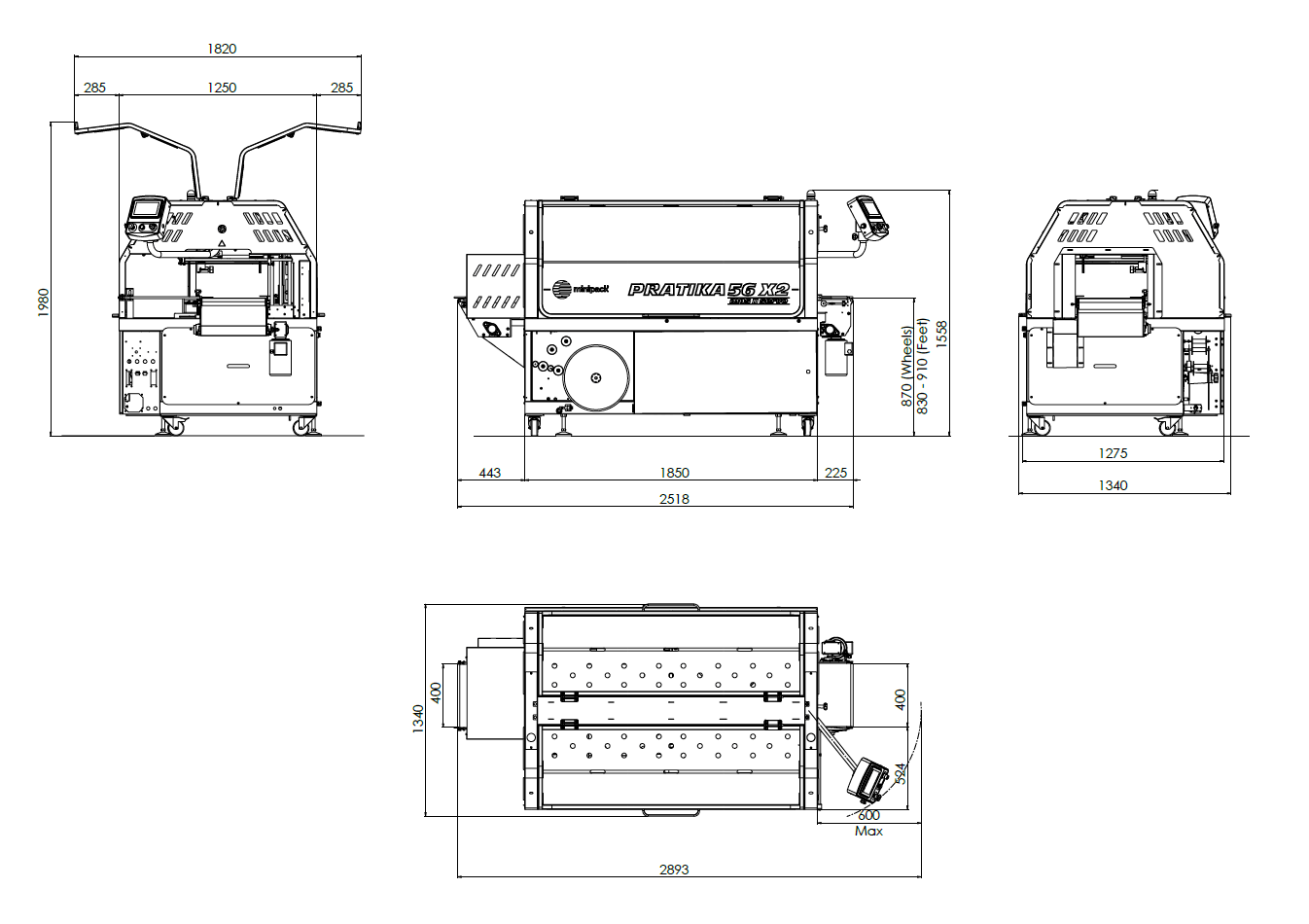

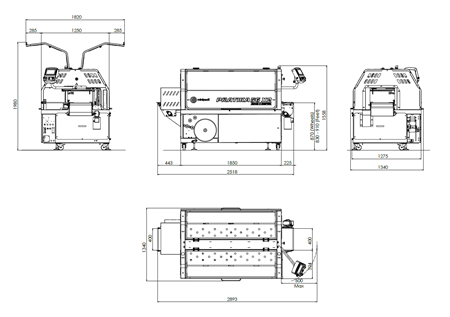

Machine dimensions (guards open) | 2893x1340x1558 mm |
Machine dimensions (guards closed) | 2893x1820x1980 mm |
Machine packaging dimensions | 2970x1650x2000 mm |
Machine color | RAL7035 textured |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.
