PRATIKA 56 MPE X2
Automatic packaging machine - fully electrical and servo-assisted – sealing bar 600x400 mm – max product h. 240

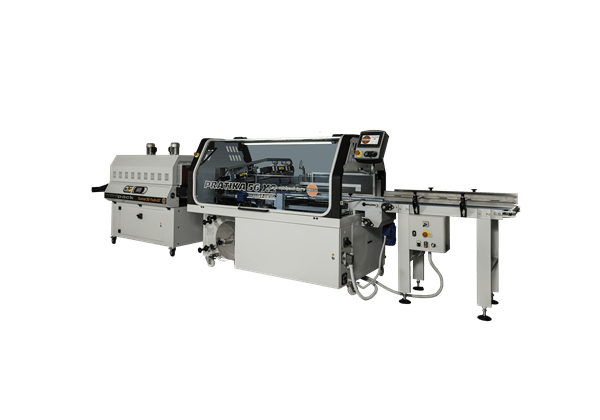

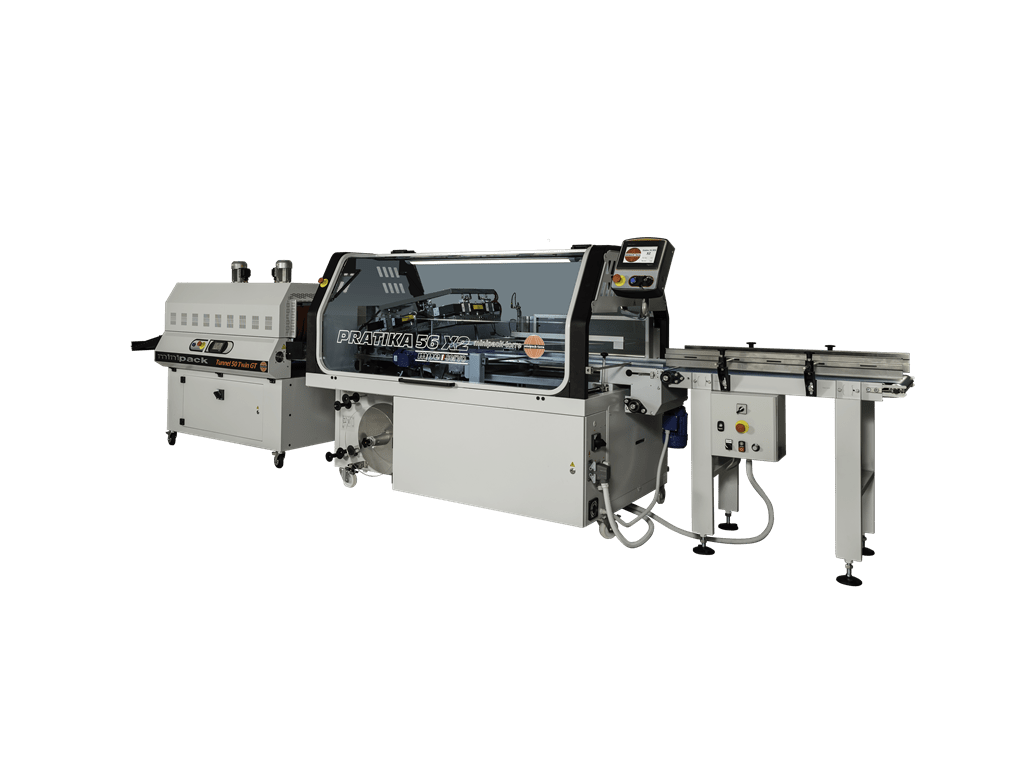

Pratika 56 MPE X2: automatic heat shrink packaging machine with double hatch
The new version of PRATIKA 56 MPE X2 is the product of careful attention to market requirements with the purpose of proposing a technologically advanced and at the same time versatile and “user- friendly” heat shrink packaging machine.
Enhanced with strong electronic, mechanical and technological contents, the new PRATIKA 56 MPE X2 heat shrink packaging machine, suitable for operation on both sides thanks to its double hatch, represents a perfect synthesis of reliability, high performance, versatility and safety, bringing a new standard to the way of conceiving automatic packaging machines with heat-shrink film.
technical features
| Electrical power supply | 230V 1Ph |
| MAX power installed | 2,5 kW |
| Maximum current | 11 A |
| Hourly output (based on the measurement of the product and the film used) | 0-3600 p/h |
| Available dimensions of the sealing bars | 600x400 mm |
| MAX product size (the maximum measurements cannot be used at the same time) | 600x400x240 mm |
| MAX Reel Dimensions (Ø x length) | Ø300x700 mm |
| Work surface height | 870 mm (wheels) 830÷910 mm (feet) |
| Machine dimensions (guards open) | 2893x1720x1980 mm |
| Machine dimensions (guards closed) | 2518x1240x1558 mm |
| Machine weight (Net/Gross) | 623/785 kg |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

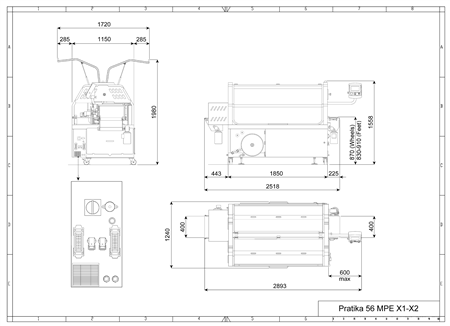

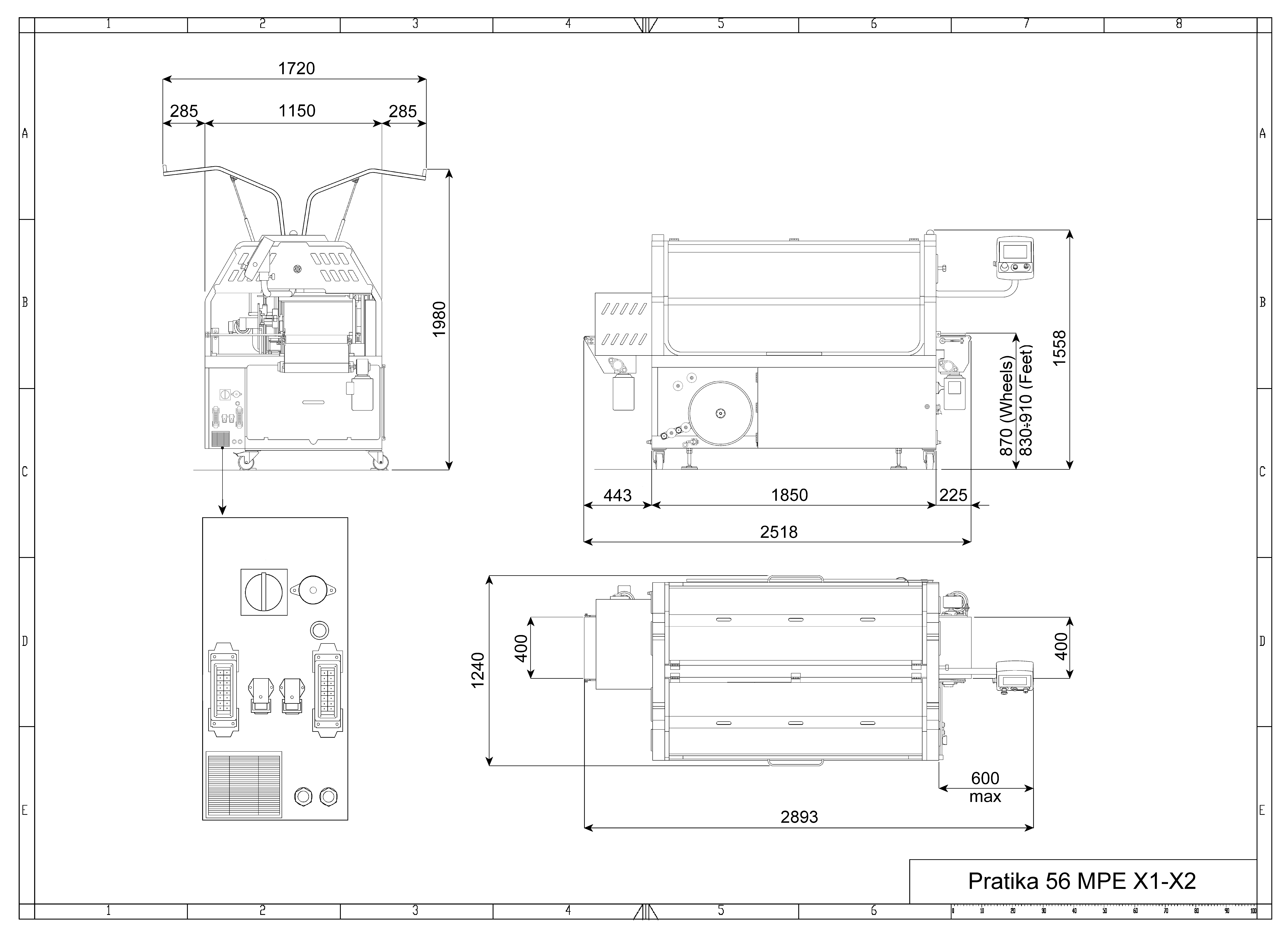

Technical drawing
DOWNLOAD PDF
DO YOU HAVE THIS MACHINE?
Register it now on our website...
Would you like to pack your products with this machine? Book your free, non-binding packaging test.Optional
“Film end” photocell kit
Products on infeed reading photocell kit
Product presser kit
Anti-static brush kit
Box for remote support
Kit of 5 photocells for irregular shape products
Infeed belt roller guide kit
Reel change carriage kit
Pedal kit
Kit of guides for unstable or cylindrical products, min h. 45 mm
Kit with 32-needle wheel
Powermeter Kit
Roller conveyor kit 0,7 m with protection
Photocell kit for non-transparent film (products min. h. =75 mm)
Photocell kit for non-transparent film (products min. h. =65 mm)
Photocell kit for transparent products
Photocell kit for transparent products
Photocell kit for printed film
“Reel end warning” photocell kit
Product safety photocell kit (h. 10-50 mm)
Bellows protection kit
Customisation
Belt for liquids wiper brush kit
Kit of guide with photocell
Kit of internal outfeed belt guide for unstable products
Infeed belt cleaning kit
Kit of guides for unstable products (min. h. =105mm) + rollers
Easy open kit
Remote assistance module kit (Industry 4.0)
Aligner kit
Aligner kit (unload belt)
Kit of guides for unstable products (h. min. = 88 mm)
Kit of guides for unstable products (outfeed belt)
Interlock safety microswitch kit
Feet kit for height adjustment (1125-1220 mm)
