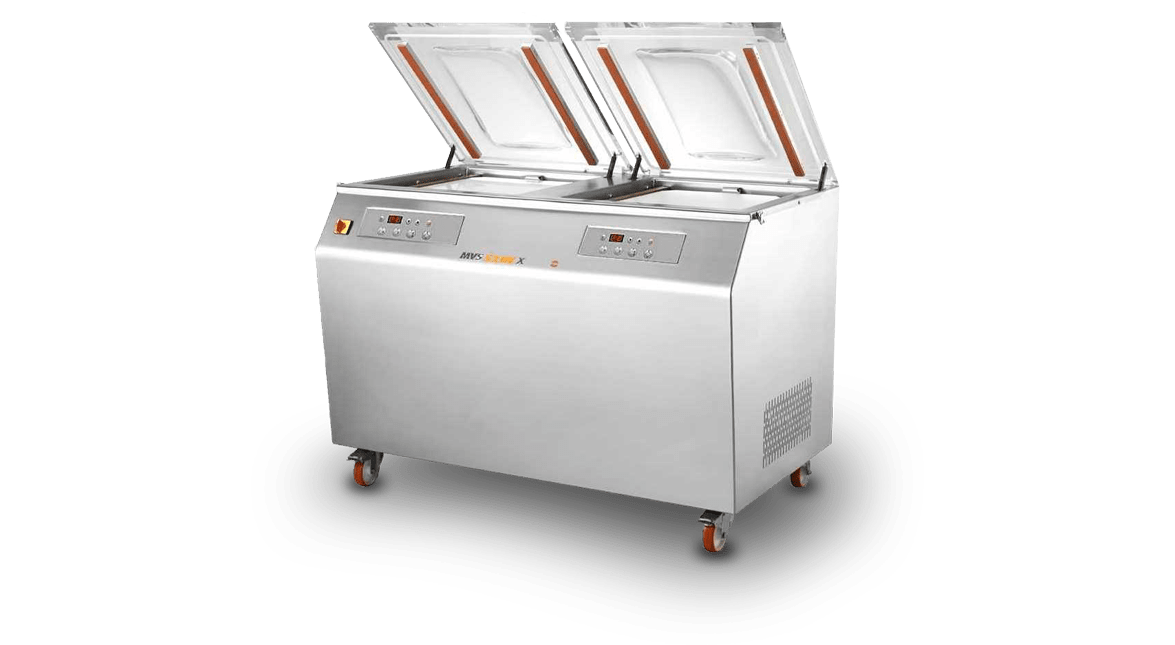

MVS52 DV X: the reliable and easy to use professional vacuum sealer
Designed in cooperation with some important chefs, the MVS X chamber vacuum sealers line has a series of avant-garde capabilities and highly technological content, with the utmost ease of use. Thanks to the collaboration with industry professionals, this line of vacuum packaging machines is equipped with specific functionalities for the needs of professional packaging.
The series models are equipped with a tactile control keypad that avoids any risk of liquid infiltration in the board, thanks to its hermetic application on the front of the bodywork. In addition, with a few touches on the control panel you can access up to 10 customized programs.
A special message on the display notifies you whenever you need to change the oil. In addition, an internal electronic sensor can read the vacuum realized in the chamber. It is also possible to calibrate these vacuum packaging machines according to the level of atmospheric pressure at different altitudes.
technical features
| Electric power supply | 208V 60Hz 3Ph |
| MAX power installed | 3,6 kW (208V 60Hz) |
| Maximum current | 13 A (208V 60Hz) |
| Dimensions of sealing bars | 530 mm (no. 2 side bars per tank - Tot.4) |
| Packaging cycle (Vacuum 99.9%) | Vacuum= 22 s Air re-immission= 5 s |
| Vacuum pump | 40 mc/h |
| Work surface height | 893 mm |
| Machine dimensions (lid open) | 1278x784x1344 mm |
| Machine dimensions (lid closed) | 1278x784x985 mm |
| Machine weight (Net/Gross) | 268/300 kg |
| Available chamber dimensions (Tank+lid) | 399x519x200 mm (2 tanks) |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

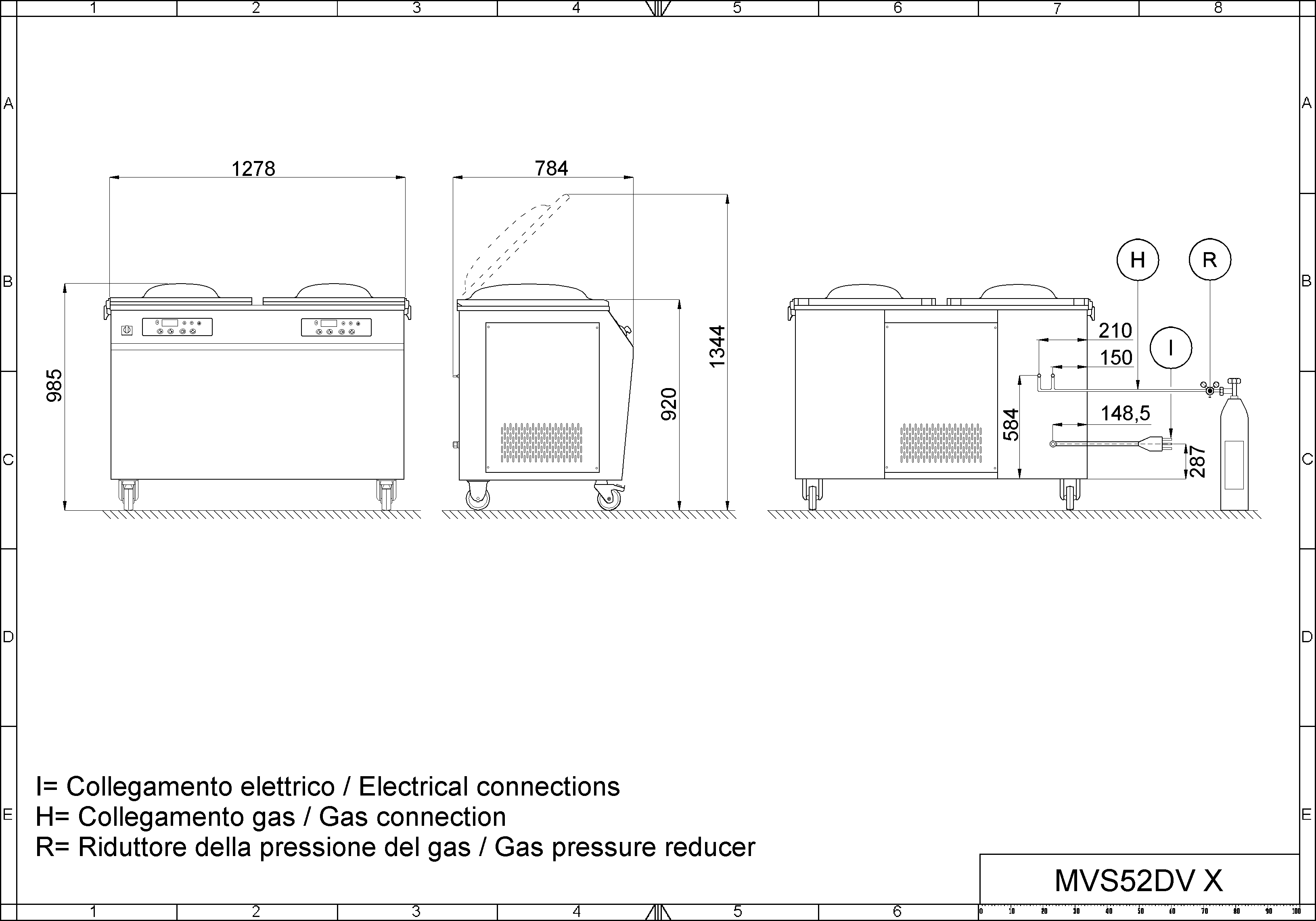

Technical drawing
Register it now on our website...
Would you like to pack your products with this machine? Book your free, non-binding packaging test.
MVS52DV vacuum machine is the highest performance model in Minipack-Torre vacuum machine range.
