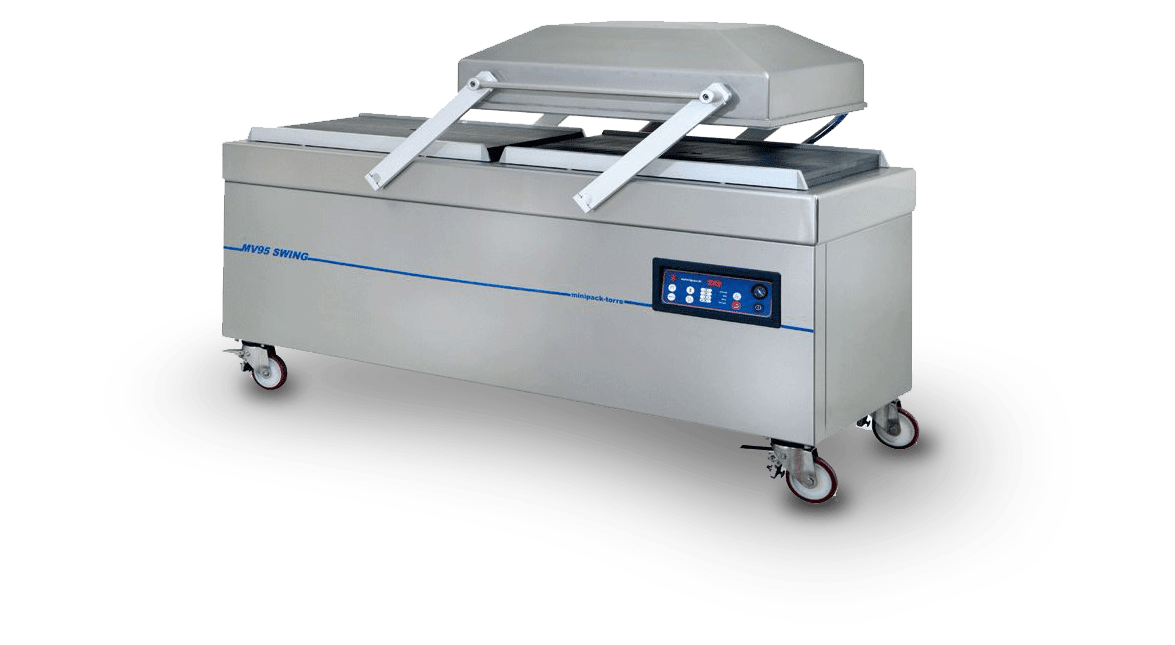

With the MVS X vacuum chamber packaging machine range, minipack®-torre offers a series of machines with high-quality technologies and functions, while maintaining the maximum ease of use that has always characterized the company’s products. One of the greatest strengths of these machines is undoubtedly their high compatibility with all vacuum food packaging requirements, achieved thanks to collaboration with leading chefs and professional operators, who helped enrich the equipment of the packaging machines with new specific functions.
Thanks to a touch-control keyboard hermetically bonded to the front body of the machine, the board is protected against any infiltration; the control display allows up to 10 different customized programs to be set, designed to cover all vacuum packaging needs in the food sector.
In addition, these vacuum chamber machines can read, through a dedicated sensor, the vacuum level created in the chamber; a message is displayed whenever an oil change is required. Another requirement fulfilled is setting the packaging machine according to the altitude at which it must operate, in order to calibrate it to the atmospheric pressure of the location.
TECHNICAL FEATURES:
The test is free and without obligation
| Power supply | 208V 60Hz 3Ph 220V 60Hz 1Ph 400V 50Hz 3Ph |
|---|---|
| Maximum installed power | 3,6 kW (208V 60Hz) 3,8 kW (220V 60Hz) 1,8 kW (400V 50Hz) |
| Maximum electrical absorption | 14 A (208V 60Hz) 17 A (220V 60Hz) 5,0 A (400V 50Hz) |
| Worktop height | 889 mm |
| Vacuum pump | 40 m³ |
| Sealing bar dimensions | 510 mm (nr. 2) |
| Usable chamber dimensions (tank + lid) | 562x518 h.241 mm |
| Machine dimensions (lid open) | 773x758 h.1313 mm |
| Machine dimensions (lid closed) | 773x758 h.1028 mm |
| Machine weight (net/gross) | 180/205 kg |
