The semi-automatic L-sealers in the MODULAR line are designed to meet requirements for flexibility and quality while offering products available at competitive costs.
High-quality pack appearance and efficiency are the main strengths of MODULAR 50S and MODULAR 70, two L-sealers capable of working with any material.
MODULAR LINE uses a range of innovative systems, including an electronically controlled sealing system and the most advanced safety devices. Thanks to the possibility of using the lines in automatic or semi-automatic mode and customizing the operating programs, every packaging stage can be simplified, maximizing production output.
MODULAR 50S and MODULAR 70 can be completed with the TUNNEL line by minipack®-torre.
TECHNICAL FEATURES:
The test is free and without obligation
| Power supply | 200V 50/60Hz 3Ph 208/220V 60Hz 3Ph 230V 50Hz 3Ph 400V 50Hz 3Ph |
|---|---|
| Maximum installed power | 2,4 kW |
| Maximum electrical absorption | 12 A (200V) 11,5 A (208V); 10,9 A (220V) 10,4 A (230V) 6 A (400V) |
| Hourly production (variable depending on film type and product dimensions) | 0-900 p/h |
| Maximum roll dimensions | Ø250x600 mm |
| Maximum product dimensions (the max dimensions cannot be achieved simultaneously) | 500x360x200 mm |
| Worktop height | 930 mm |
| Machine dimensions (sealing frame open) | 1565x750x1400 mm |
| Machine dimensions (sealing frame closed) | 1565x750x1100 mm |
| Machine weight (net/gross) | 151/182 kg |
The test is free and without obligation
We will answer all your requests

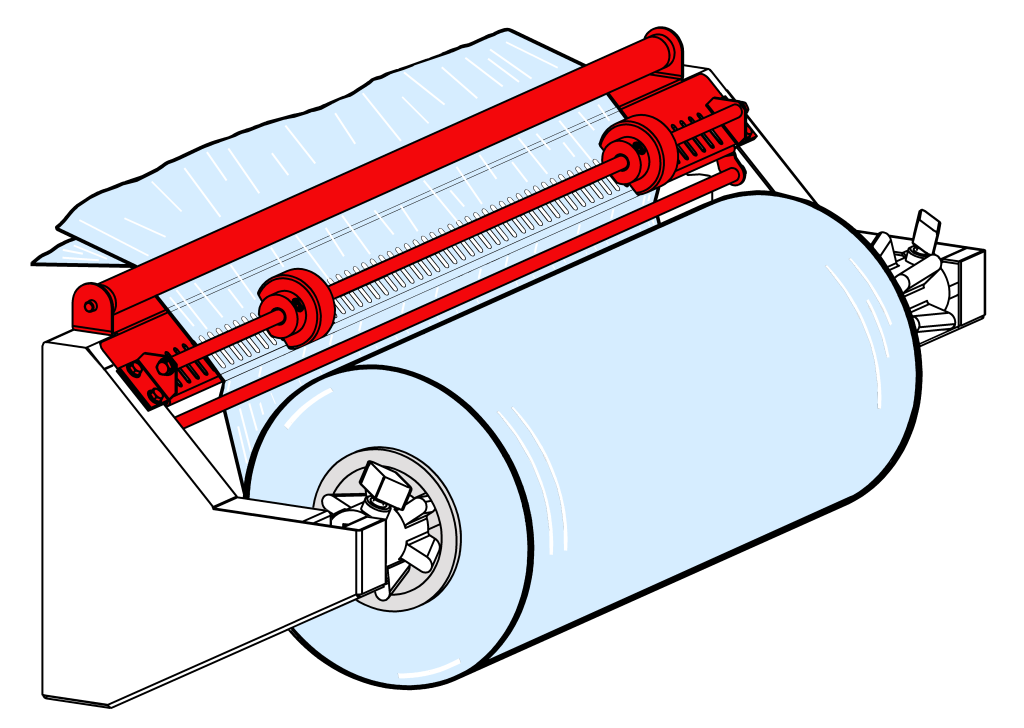

Micro-perforator kit with counter plate Modular 50 S
This optional ensures more regular and precise micro-perforation. It is particularly suitable for customers looking for an excellent aesthetic result. A more regular hole during the shrink-wrapping phase improves the final appearance.
Module kit for transferring unstable products from “Modular 50 S” a “Tunnel 50/50 Twin”
This kit, applied between the Modular 50 S outfeed conveyor and the shrink tunnel infeed conveyor, allows very small or unstable products to pass through, preventing them from stopping between one conveyor and the other or falling.

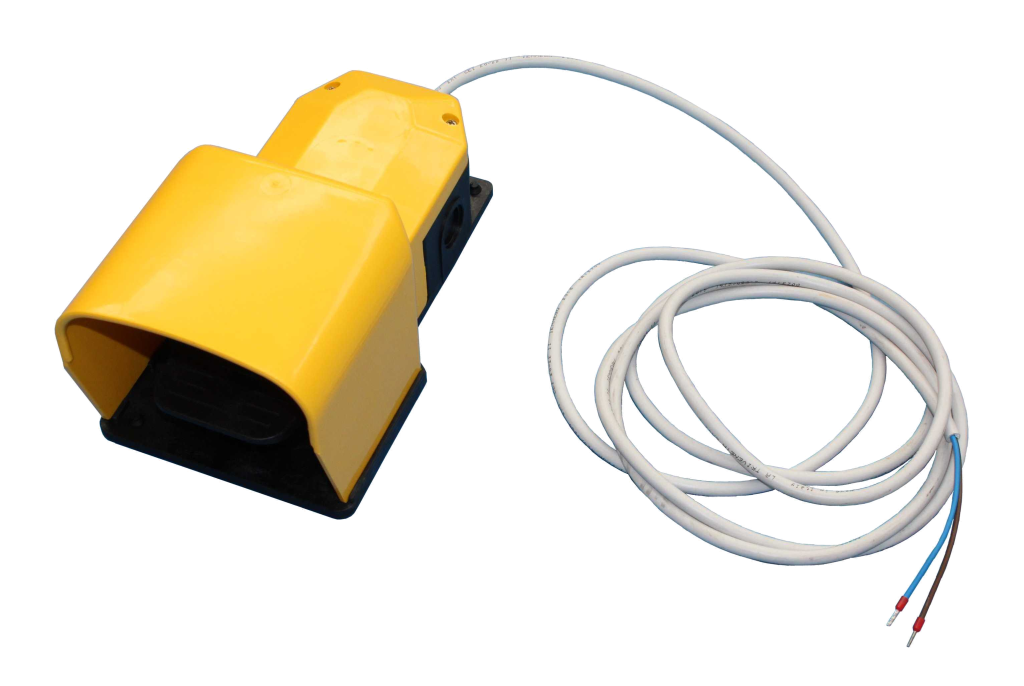

Foot pedal kit FM76A/FM77A evo-A - Replay 55C - Modular 50S/70 - Media Matic
The foot switch is particularly used on machines where the production process requires the operator to use both hands. The pedal allows the operator to START and STOP the machine with their foot, without assistance from other people.
Long front bar kit Modular 50 S
This optional, thanks to the longer front sealing bar, allows products up to 70 cm long to be packaged.
Request more information
Our team is available to provide you with precise details and targeted answers.
Contact us now, or call us
"*" indicates required fields
Semi-automatic packaging machine - L-sealing - Integrated tunnel - 540x400 mm sealing bar
Semi-automatic stainless steel packaging machine - L-sealing - 540x400 mm sealing bar
