Micro-punch kit on one side
Replay 35 EVO: Tabletop manual heat shrink
The REPLAY evo range offers more basic products, yet with the same high quality. Equipped with new cutting-edge and exclusive systems, it is the most competitive offer of the new minipack®-torre chamber machines.
REPLAY 35 evo combines significant technological content with a basic and compact shape in order to aim at substance without losing sight of excellence, a characteristic common to all machines made by minipack®-torre.
technical features
| Electrical power supply | 230V 1Ph120V 1Ph |
| Maximum power installed | 2kW (230V)2,25kW (120V) |
| Maximum current | 8,6A (230V)19A (120V) |
| MAX product size | 350x240x140 mm |
| Available dimensions of the sealing bars | 380x250 mm |
| MAX Reel Dimensions (Ø x length) | Ø250x380 mm |
| Machine dimensions (open hood) | 935x690x640 mm |
| Machine dimensions (closed hood) | 935x420x640 mm |
| Weight (Net/Gross) | 49-63 kg |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

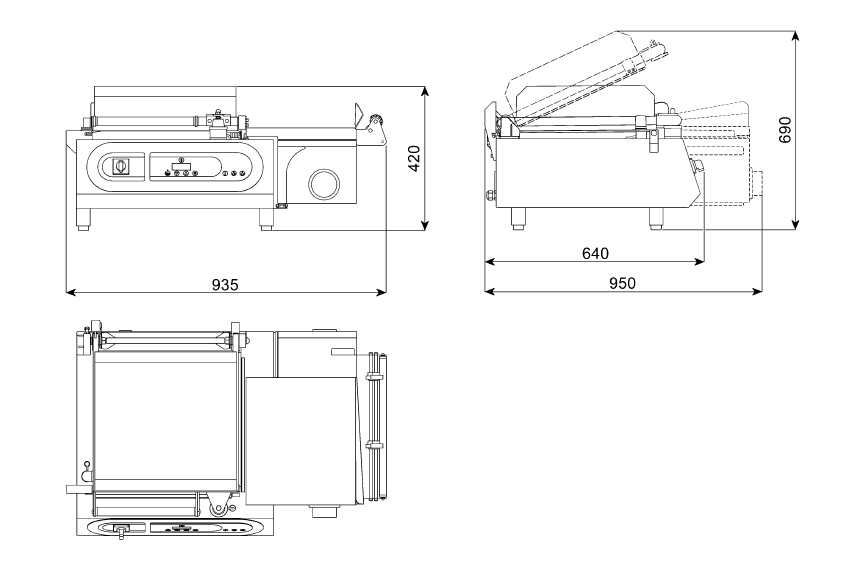

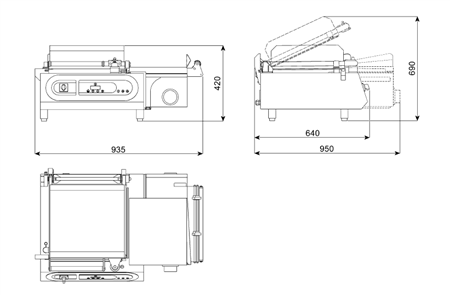

Technical drawing
DOWNLOAD PDF
DO YOU HAVE THIS MACHINE?
Register it now on our website...
Would you like to pack your products with this machine? Book your free, non-binding packaging test.Optional
case history
Before Minipack-torre shrink-wrapping machines, shrink-wrapping was exclusively performed with big machines and complex systems in large companies.The new packaging machine line was born in 1970, thus allowing the small or medium companies to employ shrink-wrapping
