PRATIKA 55 SMART T50
Automatic Packaging Machine - L-Sealing - Integrated Tunnel 50 Digit
PRATIKA 55 SMART T50: Small in design, big in performance with servo technology.
The PRATIKA 55 Smart T50 is an automatic shrink wrapping machine that stands out for its highly efficient tunnel, designed to significantly increase the production capacity. This tunnel is fully adjustable via PLC, allowing for precise and customized control of the packaging process. The machine is compact and optimized to deliver high performance, combining advanced technology and ease of use.
What are the advantages of this new packaging machine?
- Brushless sealing bar servomotor
- Electric (non-pneumatic) feeding system
- Color touch screen control panel
- Compact (3.3 m²)
- Standard conveyor belt approach
- Vertical photocell for product detection included
- Single-chamber shrink tunnel 450x920x240 (LxPxH)
- Increased productivity
technical features
| Electrical supply | 400V 50/60Hz 3Ph + inverter |
| Maximum installed power | 9kW (400V) |
| Maximum electrical consumption | 15A (400V) |
| Hourly production | 0-1200 p/h |
| Maximum roll size | 250x600 (ØxL) |
| Maximum product dimensions | 400W 420L 120H |
| Conveyor belt height | 870 mm (Standard on casters) Optional feet kit |
| Machine dimensions (Doors open) | 2240x1625x2732 (WxLxH) mm |
| Machine dimensions (Doors closed) | 1325x1625x2732 (WxLxH) mm |
| Machine packaging dimensions | 1440x1990x2950 mm |
| Weight (Net/Gross) | 730/865 kg |
| Machine color | RAL7035 |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

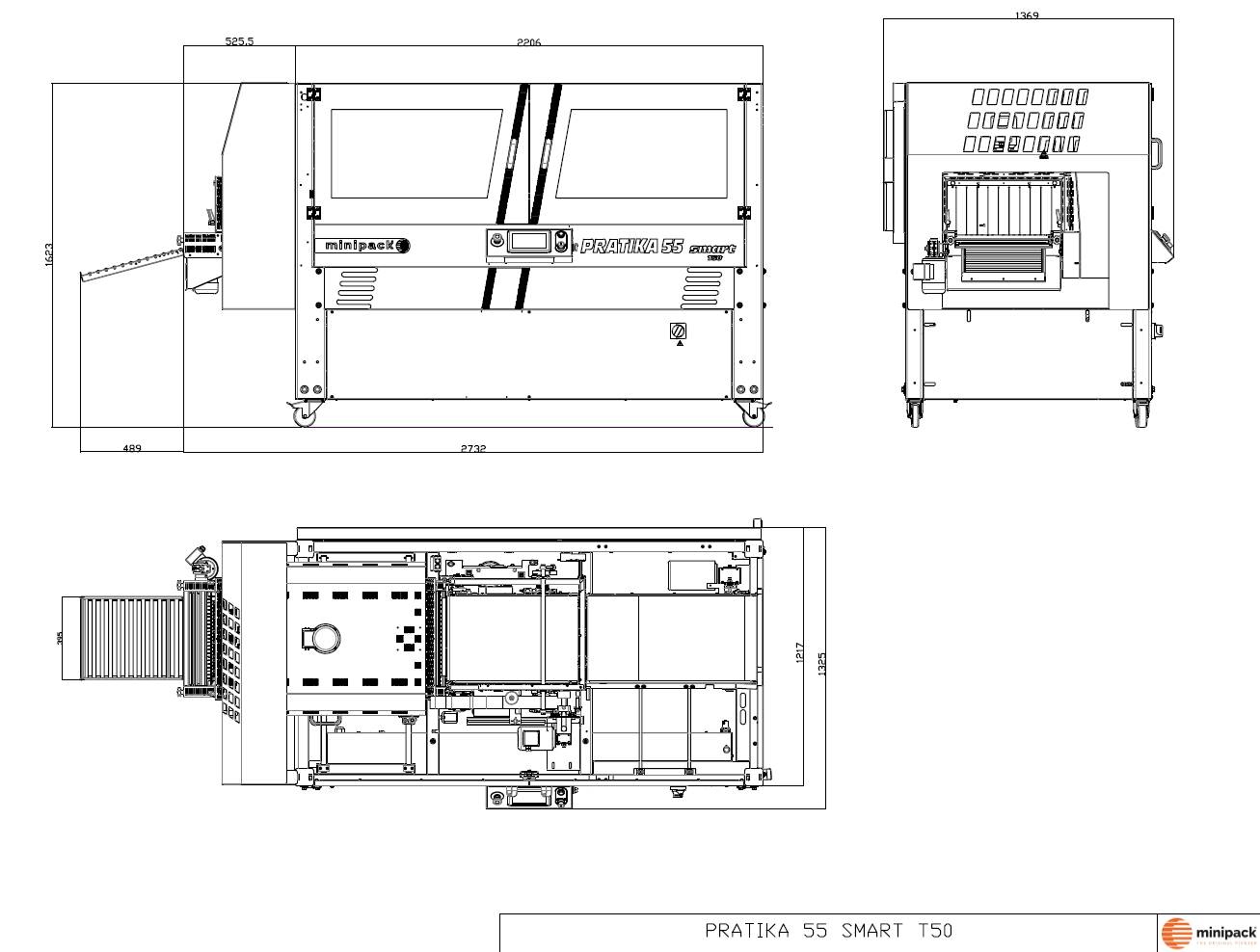

Technical drawing
DOWNLOAD PDF
DO YOU HAVE THIS MACHINE?
Register it now on our website...
Would you like to pack your products with this machine? Book your free, non-binding packaging test.Optional
“Come Back” conveyor kit
Stainless steel loading ledge kit
Transparent cover kit
Wireless push-button kit
Roller guide kit for KR400051
“Trito 50” labeller support column
Adjustable guide for labeller
Roller for small products
10kVA Auto-transformer kit 200-208-230V 3Ph SEC. 400V 3Ph+N
Feet kit for height adjustment (810-920 mm)
PTFE Belt
Pedal kit
“Film end” photocell kit
“Reel end warning” photocell kit
Photocell kit for printed film
Photocell kit for transparent products
Roller conveyor 40X100
Wheel kit for “Come Back” belts - Quick Connection -
Feet kit for height adjustment (850-990 mm)
Wheel kit for “Come Back” belts
Module kits to transfer unstable products
Roller conveyor 40x7
