MX5

Bench vacuum sealer - Sealing bar 544 mm (Front bar), 457 mm (Side bar) - Prepares recipes, infusions, marinades with vacuum technology

MX HQ 5 FR0001 LOW

MX5: Bigger, faster, smarter: the vacuum machine that revolutionizes production

The MX5 by Minipack is the largest model in the MX series, designed to meet the needs of large-scale operations. With its impressive dimensions of 57 cm width, 48 cm length, and 25 cm height, the MX5 can accommodate large containers such as standard size gastronorm trays.

Key Benefits of the MX5

  • Increased Production: The generous size of the MX5 allows you to package more products in less time, boosting your productivity and profitability.
  • Packaging Flexibility: With the 56 cm front and back sealing bars, adjustable to your needs, you can easily seal bags of various sizes.
  • Time Savings: The integrated software of the MX5 allows you to automatically program the processing and vacuum phases, saving precious time that can be dedicated to other activities.
  • Superior Product Quality: The optimal vacuum cycles guaranteed by the TruVac™ Smart Vacuum system preserve the freshness and quality of your products, reducing waste.



Key Features of the MX5

  • Precision Packaging Technology: The TruVac™ Smart Vacuum system with dual sensors and advanced algorithms ensures optimal vacuum cycles, preventing leaks and product damage.
  • Quick Marinating and Infusion Programs: Speed up your food preparation processes with the integrated quick marinating and infusion programs.
  • 5" Color Touch Screen: The customizable, intuitive user interface with 24 shortcut icons makes operation simple and intuitive.

Discover how the MX5 by Minipack can transform your business, increasing the production of quality products efficiently and reliably.

Need more info? Get in touch now and we’ll answer all your queries!

technical features

MX5
2 front bars
MX5
2 side bars
Power supply120V 60Hz
230V 50/60Hz
120V
230V
Phase1 Ph1 Ph
MAX power installed2,3kW (230V)
2kW (120V)
2,5kW (230V)
2,1kW (120V)
Maximum current10A (230V)
16,5A (120V)
11A (230V)
18A (120V)
Vacuum pump20 m³20 m³
Dimensions of the sealing bar457 mm544 mm

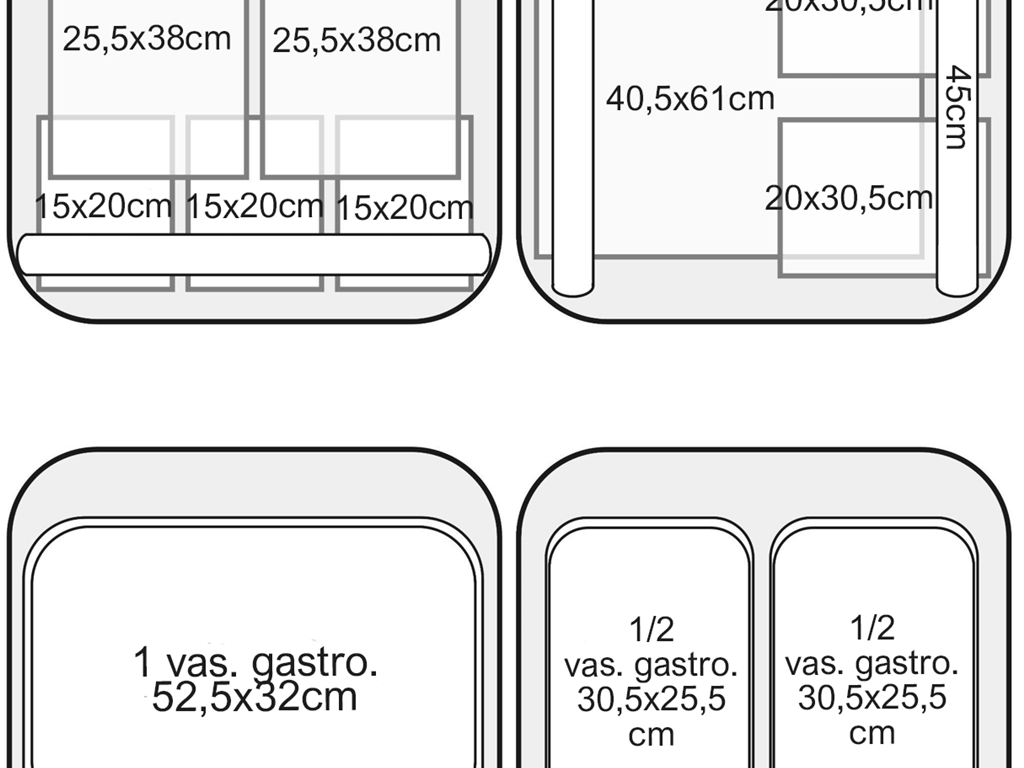

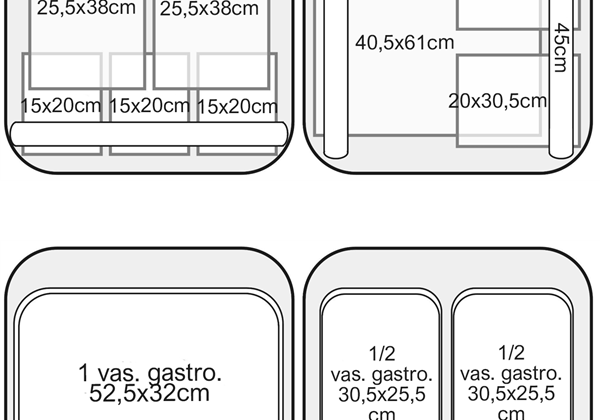

Available chamber dimensions
(Tank+lid)
560x468 h.247 mm350x456 h.207 mm
Machine dimensions
(lid open)
675,5x692 h.887 mm675,5x692 h.591 mm
Machine dimensions
(lid closed)
675,5x692 h.887 mm675,5x692 h.591 mm
Package sizes800x800 h.825mm800x800 h.825mm
Machine weight (Net/Gross)105/113 kg105/113 kg

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

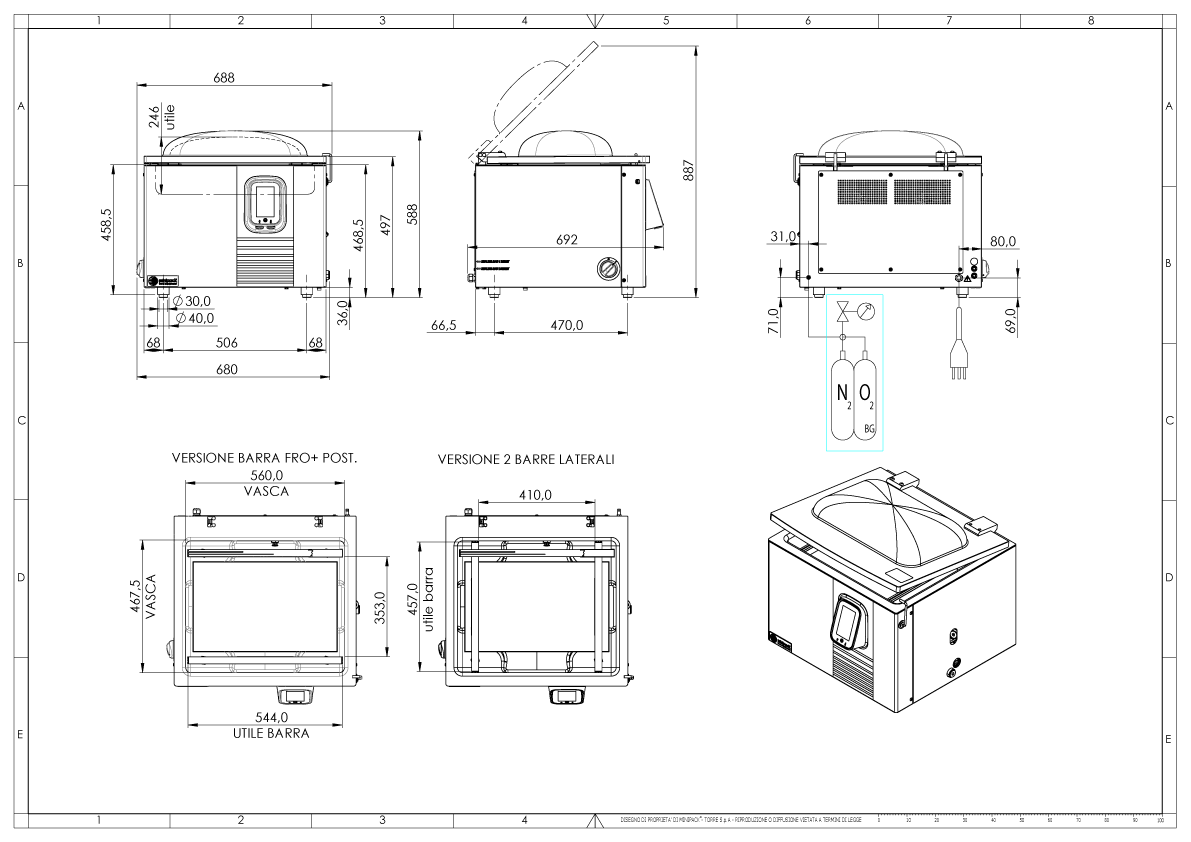

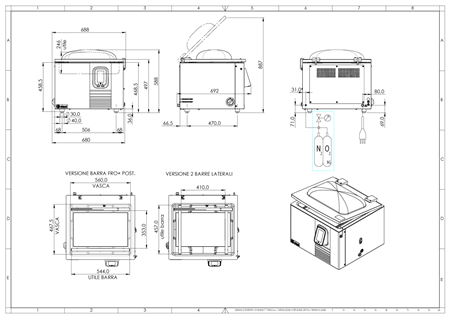

Technical drawing
