Semiautomatic packaging machine - L-sealing - Integrated tunnel - Sealing bar 540x400 mm

NEW-Media principale

Media: efficient and versatile monoblock wrapping machine

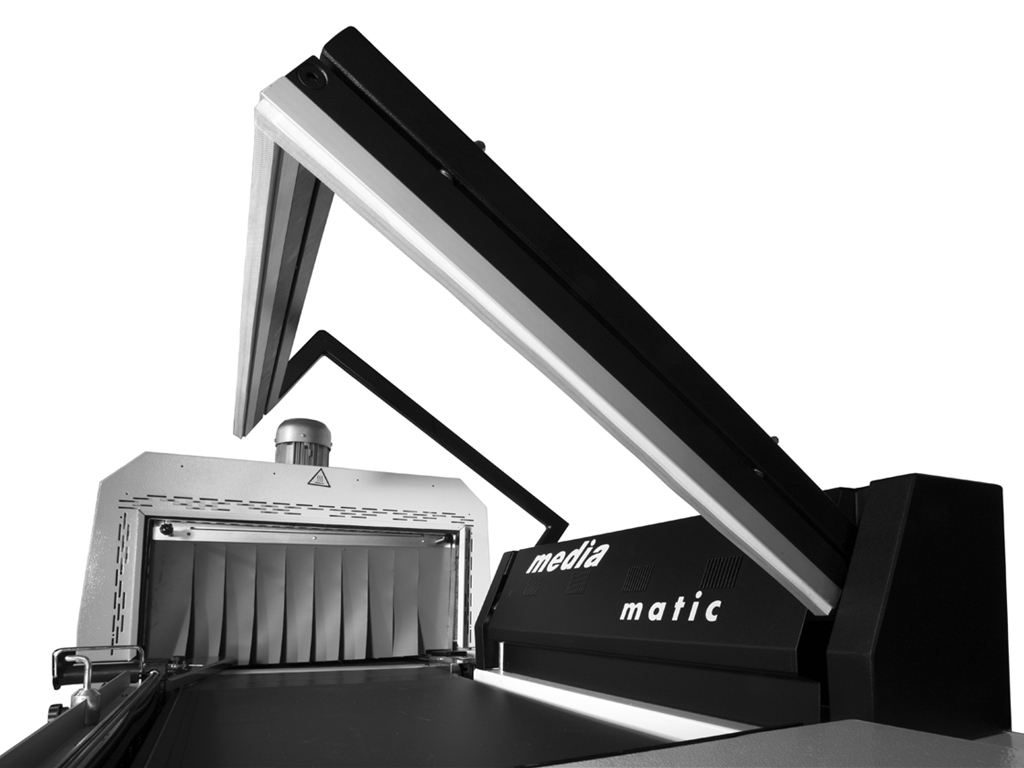

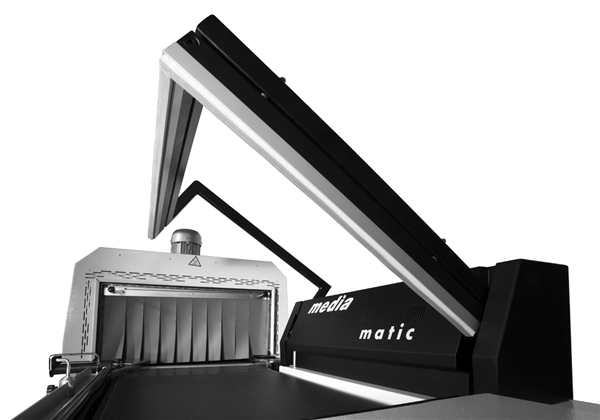

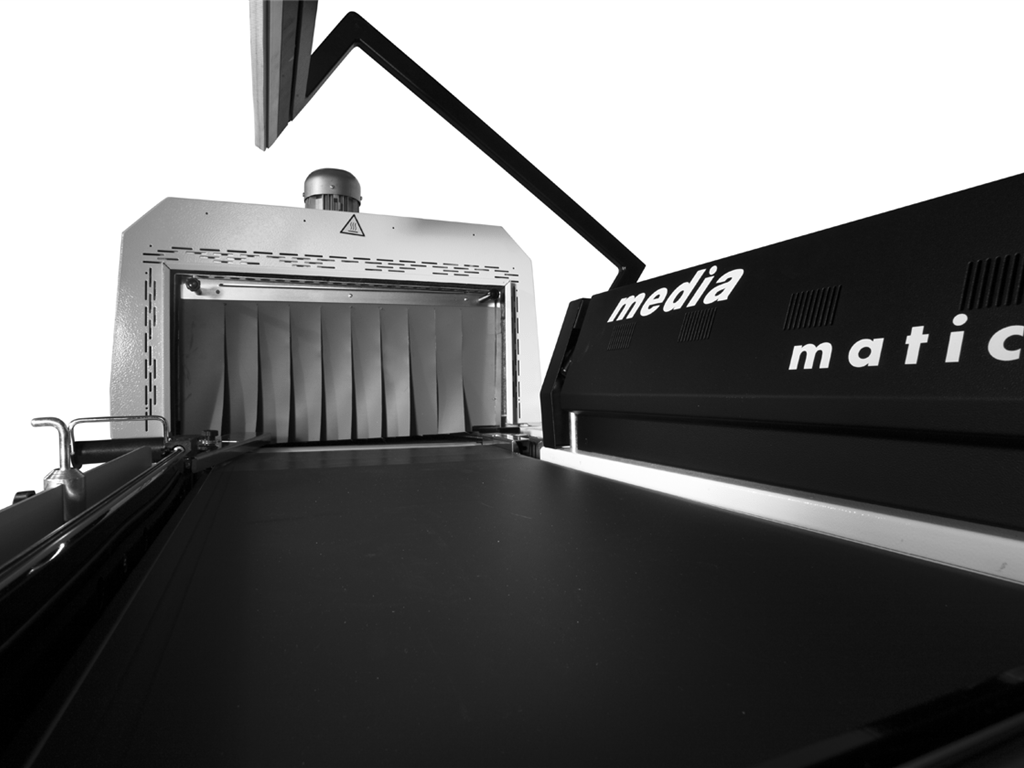

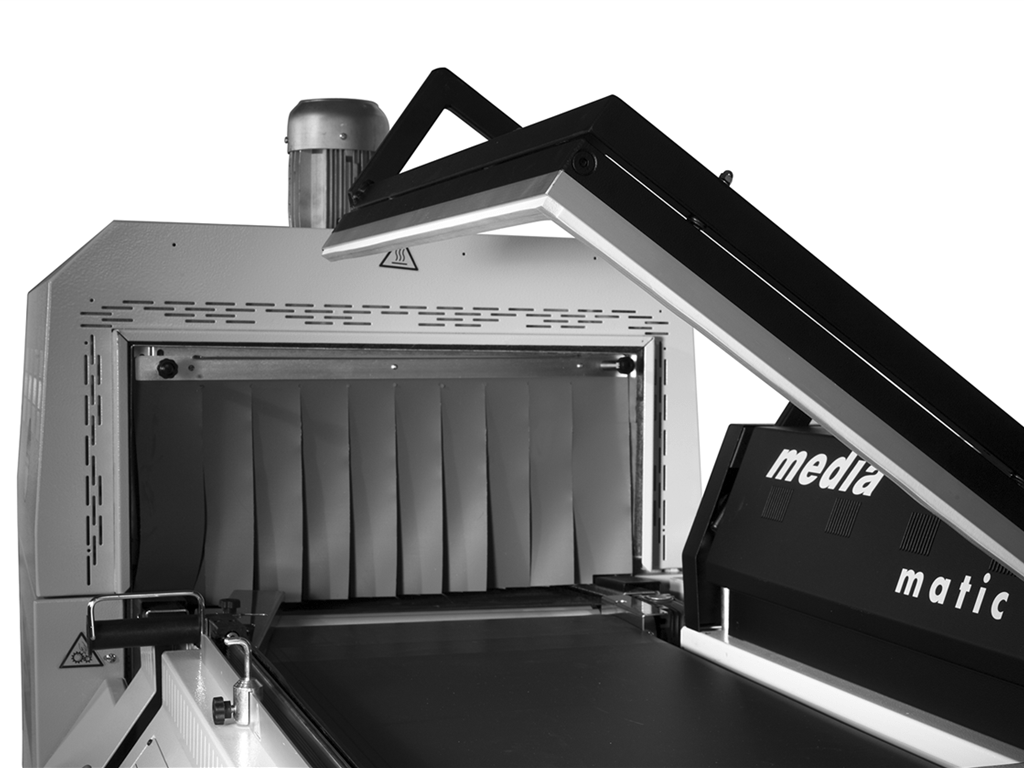

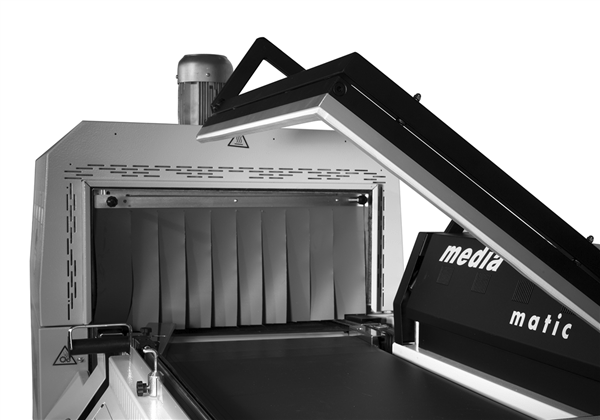

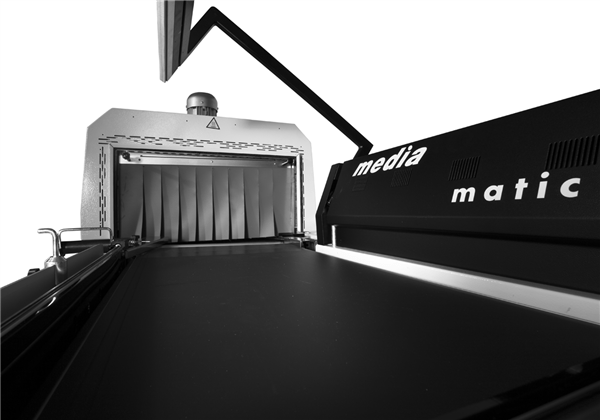

MEDIA is the latest piece of Minipack®-Torre range of semi-automatic modular angular wrapping machines, presenting a monoblock structure that distinguishes it from other proposals. Specifically, the retracting tunnel -equipped with a speed, height and temperature adjustment system- is fully integrated within the welding unit, making the structure of the packaging machine versatile and compact.

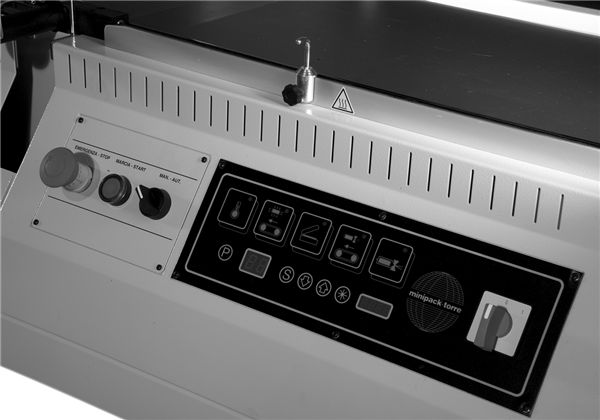

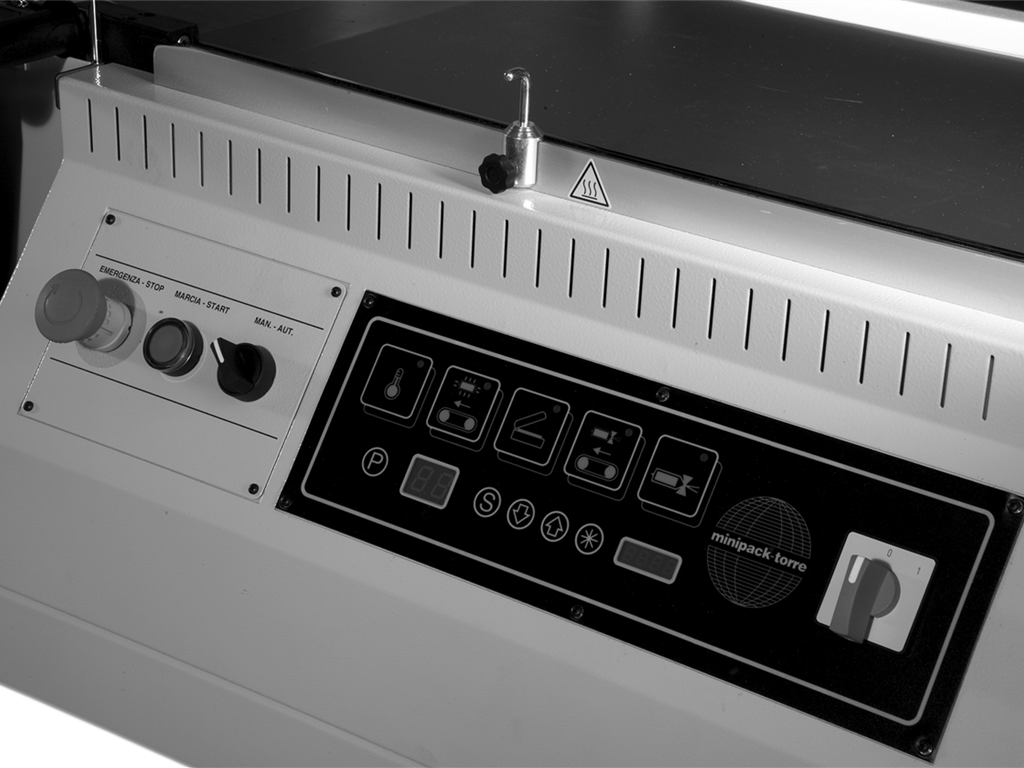

MEDIA presents an enviable series of high-profile technical features, including electronic adjustment of welding time and the presence of Teflon-coated blades, which guarantee the complete absence of fumes. At the same time, this angular wrapping machine provides a complete standard equipment: sealing bar and motorized scrap winder supplied. The STEEL IT version of MEDIA is ideal for the needs of the food and pharmaceutical industries.

In short, MEDIA is a perfect packaging machine for all the companies that Think Big!

Need more info? Get in touch now and we’ll answer all your queries!

technical features

Electrical power supply208V 60Hz
230V 50Hz
400V 50Hz
400V 50/60Hz
Phase3Ph
MAX power installed6,5 kW (208V)
6,3 kW (230-400V)
Hourly output750 p/h
Maximum current19 A (208V)
17 A (230V)
10 A (400V)
Dimensions of sealing bars540x400 mm
MAX Reel Dimensions (diameter)350 mm
MAX Reel Strip Dimensions (width)600 mm
875 mm
Machine weight (Net/Gross)287/343 kg
Tunnel infeed dimensions440x240 mm
Dimensions with the sealing frame open2780x730x h.1400 mm
Dimensions with the sealing frame closed2780x730x h.1400 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.
