FM77A evo-A

Automatic heat shrink machine - Sealing bar 840x590 mm - Dedicated electronic card - Double display

FM77A evo-A (nuovo logo)

New FM77A evo-A: fast, reliable and simple!

The historic FM77A is renewed by combining reliability and ease of use. With a dedicated electronic interface card and an electro-mechanical panel we guarantee reliability, safety, speed and availability of spare parts.

Need more info? Get in touch now and we’ll answer all your queries!
  • TECHNICAL FEATURES:
    • Option of having an ‘Automatic’ work cycle (press the start button cycles performed in sequence, interrupted by the programmed pause interval) and a ‘Manual’ work cycle (press the start button to perform one packaging cycle)
    • Automatic lid opening, product ejeption
    • Frontal control interface: intuitive programming
    • Standard sealing bars liquid cooling system: increased productivity and improved sealing
    • Innovative upper hood fixing, easier maintenance
    • Safety control on sealing blades: safer machine
    • Roll support with bigger diameter (300 mm)
    • Packaging plate indipendent from roll support: suitable for the packaging of small products with the same film roll
    • Innovative micropuncher: continuous and accurate perforation
    • Double display: 2 digital  for programs and settings and 4-digit as piece counter
    • 6 programs digital control panel easy to be used
    • Counterpieces included: more complete equipment
    • Power board access with frontal door
    • Higher screened plate: more protection of the heating elements
    • More powerful fan motor: superior shrinking performance
    • Extra safety thermostat on the heating elements: safer machine
    • New rubber support wihtout glue
    • Hood safety system:  Greater safety for the operator



technical features

Electrical power supply200V 50/60Hz 3Ph
208V 60Hz 3Ph
230V 50Hz 3Ph
400V 50Hz 3Ph
Maximum power installed6,0 kW (200V)
7,9 kW (208V)
7,5 kW (230/400V)
Maximum current20 A (200V)
24 A (208V)
21 A (230V)
12 A (400V)
Hourly production0-400
Useful dimensions of sealing bars840x590 mm
Maximum reel dimensions
(Ø x length)
Ø300x800 mm
Maximum product dimensions800x500x200 mm
Work surface height940 mm
Machine dimensions (open hood)3140x1000x1480 mm
Machine dimensions (closed hood)3140x1000x1180 mm
Machine weight (net / gross)286/338 kg
Machine colorRAL2004 peeled
Packaging flat colorRAL7016 peeled

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

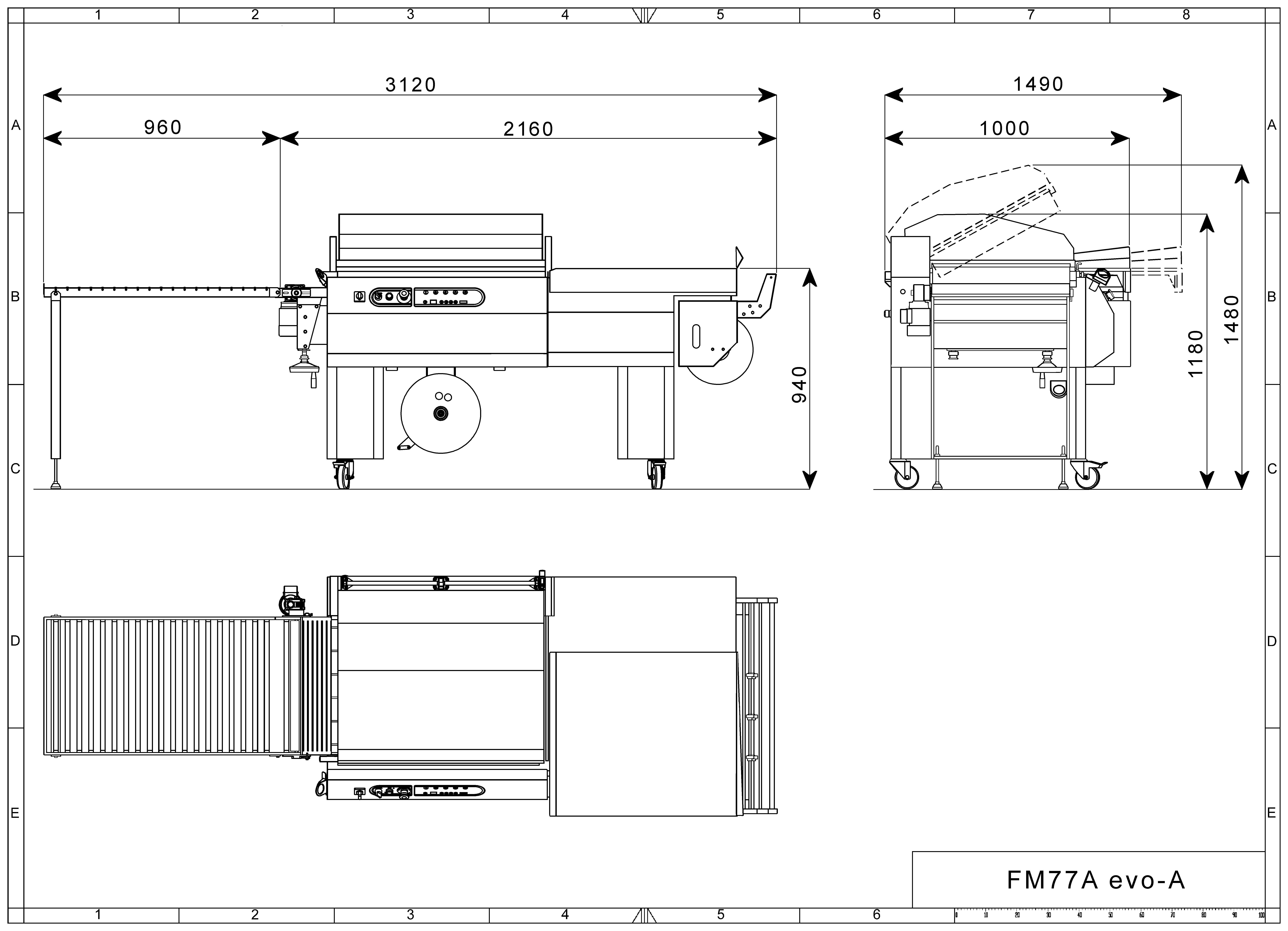

Technical drawing
